6. ENSO

This notebook provides an overview of running the ENSO Metrics package through the PMP.

Reference

  • Planton, Y., E. Guilyardi, A. T. Wittenberg, J. Lee, P. J. Gleckler, T. Bayr, S. McGregor, M. J. McPhaden, S. Power, R. Roehrig, A. Voldoire, 2020: Evaluating El Niño in climate models with the CLIVAR 2020 ENSO metrics package. Bulletin of the American Meteorological Society. doi: 10.1175/BAMS-D-19-0337.1

  • Lee, J., P. J. Gleckler, M.-S. Ahn, A. Ordonez, P. Ullrich, K. R. Sperber, K. E. Taylor, Y. Y. Planton, E. Guilyardi, P. Durack, C. Bonfils, M. D. Zelinka, L.-W. Chao, B. Dong, C. Doutriaux, C. Zhang, T. Vo, J. Boutte, M. F. Wehner, A. G. Pendergrass, D. Kim, Z. Xue, A. T. Wittenberg, and J. Krasting, 2024: Systematic and Objective Evaluation of Earth System Models: PCMDI Metrics Package (PMP) version 3. Geoscientific Model Development, 17, 3919–3948, doi: 10.5194/gmd-17-3919-2024

Description for individual metrics can be found at https://github.com/CLIVAR-PRP/ENSO_metrics/wiki.

If enso_package is not installed in your environment, you will need to install it.

To check whether the ENSO metrics package is installed in the current virtual conda environment:

conda list enso_metrics

To install the ENSO metrics package in the current virtual conda environment:

conda install -c conda-forge enso_metrics

Unquote the commend in the following box to install the ENSO package. Further installation instruction is available here: https://github.com/CLIVAR-PRP/ENSO_metrics/wiki/install

Please note, ENSO package requires Python 3.10.x.

[ ]:
"""
!conda install -c conda-forge enso_metrics
"""

Download demo data

The ENSO metrics demo requires downloading a large sample data set (size 10.8 GB). The ENSO metric requires a different set of sample data than the rest of the PMP metrics. This section of the notebook will download that data to your chosen location and generate a basic parameter file.

[1]:
# Lets get the file containing the data needed for this demo
import requests
r = requests.get("https://pcmdiweb.llnl.gov/pss/pmpdata/pmp_enso_tutorial_files.v20210823.txt")
with open("enso_data_files.txt","wb") as f:
    f.write(r.content)

If you want to change the location where the demo data and output are stored, you can do so here:

[2]:
# This is where you will be downloading the sample_data
demo_data_directory = "demo_data"
# this line is where your output will be stored
demo_output_directory = "demo_output"

Then download the data. The total sample data size is 10.8 GB. This will take several minutes.

[3]:
# Let's download the files
from pcmdi_metrics.io.base import download_sample_data_files
try:
    download_sample_data_files("enso_data_files.txt", demo_data_directory)
    print("All files downloaded")
except:
    print("Download failed")
All files downloaded

After downloading the data, we generate the parameter file for this demo.

[4]:
from download_sample_data import generate_parameter_files
filenames=["basic_enso_param.py.in"]
generate_parameter_files(demo_data_directory, demo_output_directory, filenames=filenames)
Preparing parameter file: basic_enso_param.py
Saving User Choices
[5]:
# To open and display one of the graphics
import matplotlib.pyplot as plt
import matplotlib.image as mpimg
from matplotlib import rcParams

import os

%matplotlib inline

Usage

The ENSO driver can be run from the command line as enso_driver.py. In this notebook, we will use bash cell magic (cells beginning with %%bash) to run the ENSO driver as a subprocess.

For help, type:

enso_driver.py --help
[6]:
%%bash
enso_driver.py --help
usage: enso_driver.py [-h] [--parameters PARAMETERS]
                      [--diags OTHER_PARAMETERS [OTHER_PARAMETERS ...]]
                      [--mip MIP] [--exp EXP] [--modpath MODPATH]
                      [--modpath_lf MODPATH_LF]
                      [--modnames MODNAMES [MODNAMES ...]] [-r REALIZATION]
                      [--reference_data_path REFERENCE_DATA_PATH]
                      [--reference_data_lf_path REFERENCE_DATA_LF_PATH]
                      [--metricsCollection METRICSCOLLECTION]
                      [--json_name JSON_NAME] [--netcdf_name NETCDF_NAME]
                      [--results_dir RESULTS_DIR] [--case_id CASE_ID]
                      [--obs_catalogue OBS_CATALOGUE]
                      [--obs_cmor_path OBS_CMOR_PATH] [-d [DEBUG]]
                      [--obs_cmor [OBS_CMOR]] [--nc_out [NC_OUT]]

options:
  -h, --help            show this help message and exit
  --parameters PARAMETERS, -p PARAMETERS
  --diags OTHER_PARAMETERS [OTHER_PARAMETERS ...]
                        Path to other user-defined parameter file. (default:
                        None)
  --mip MIP             A WCRP MIP project such as CMIP3 and CMIP5 (default:
                        cmip5)
  --exp EXP             An experiment such as AMIP, historical or pi-contorl
                        (default: historical)
  --modpath MODPATH, --mp MODPATH
                        Explicit path to model data (default: None)
  --modpath_lf MODPATH_LF
                        Directory path to model land fraction field (default:
                        None)
  --modnames MODNAMES [MODNAMES ...]
                        List of models (default: None)
  -r REALIZATION, --realization REALIZATION
                        Consider all accessible realizations as idividual -
                        r1i1p1: default, consider only 'r1i1p1' member Or,
                        specify realization, e.g, r3i1p1' - *: consider all
                        available realizations (default: r1i1p1)
  --reference_data_path REFERENCE_DATA_PATH, --rdp REFERENCE_DATA_PATH
                        The path/filename of reference (obs) data. (default:
                        None)
  --reference_data_lf_path REFERENCE_DATA_LF_PATH
                        Data path to land fraction of reference dataset
                        (default: None)
  --metricsCollection METRICSCOLLECTION
                        Metrics Collection e.g. ENSO_perf, ENSO_tel, or
                        ENSO_proc (default: ENSO_perf)
  --json_name JSON_NAME
                        File name for output JSON (default: None)
  --netcdf_name NETCDF_NAME
                        File name for output NetCDF (default: None)
  --results_dir RESULTS_DIR, --rd RESULTS_DIR
                        The name of the folder where all runs will be stored.
                        (default: None)
  --case_id CASE_ID     version as date, e.g., v20191116 (yyyy-mm-dd)
                        (default: v20250829)
  --obs_catalogue OBS_CATALOGUE
                        obs_catalogue JSON file for CMORized observation,
                        default is None (default: None)
  --obs_cmor_path OBS_CMOR_PATH
                        Directory path for CMORized observation dataset,
                        default is None (default: None)
  -d [DEBUG], --debug [DEBUG]
                        Option for debug: True / False (defualt) (default:
                        False)
  --obs_cmor [OBS_CMOR]
                        Use CMORized reference database?: True / False
                        (defualt) (default: False)
  --nc_out [NC_OUT]     Option for generate netCDF file output: True (default)
                        / False (default: True)

Basic example

Parameters for the ENSO Metrics can be set on the command line or using a parameter file. This first example will use a parameter file, which is shown below.

[7]:
with open("basic_enso_param.py") as f:
    print(f.read())
import os

#
#  OPTIONS ARE SET BY USER IN THIS FILE AS INDICATED BELOW BY:
#
#

# MODELS
modnames = ['ACCESS1-0']
mip = 'cmip5'  # cmip5, cmip6
exp = 'historical'  # historical, piControl
realization = 'r1i1p1'
modpath = 'demo_data/CMIP5_demo_data/%(variable)_Amon_%(model)_historical_%(realization)_185001-200512.nc'
modpath_lf = 'demo_data/CMIP5_demo_data/sftlf_fx_%(model)_amip_r0i0p0.nc'

# OBSERVATIONS
obs_cmor = True
obs_cmor_path = "demo_data/obs4MIPs_PCMDI_monthly"
obs_catalogue = "demo_data/obs4MIPs_PCMDI-CEM2021_monthly_bySource_catalogue_v20210805_demo.json"

# METRICS COLLECTION
metricsCollection = 'ENSO_perf'  # ENSO_perf, ENSO_tel, ENSO_proc

# OUTPUT
case_id = 'basicTestEnso'
results_dir = os.path.join('demo_output',case_id, metricsCollection)

json_name = '%(mip)_%(exp)_%(metricsCollection)_%(case_id)_%(model)_%(realization)'
netcdf_name = json_name
nc_out = True

The next cell runs the ENSO driver using the basic parameter file. This may take several minutes.

[8]:
%%bash
enso_driver.py -p basic_enso_param.py
mip: cmip5
exp: historical
models: ['ACCESS1-0']
realization:  r1i1p1
mc_name: ENSO_perf
outdir: demo_output/basicTestEnso/ENSO_perf
netcdf_path: demo_output/basicTestEnso/ENSO_perf
debug: False
obs_cmor: True
obs_cmor_path: demo_data/obs4MIPs_PCMDI_monthly
egg_pth: /Users/lee1043/miniforge3/envs/pmp_devel_20250715/share/pmp
output directory for graphics:demo_output/basicTestEnso/ENSO_perf
output directory for diagnostic_results:demo_output/basicTestEnso/ENSO_perf
output directory for metrics_results:demo_output/basicTestEnso/ENSO_perf
list_variables: ['pr', 'sst', 'taux']
list_obs: ['AVISO-1-0', 'ERA-INT', 'GPCP-2-3', 'HadISST-1-1']
PMPdriver: dict_obs readin end
Process start:Fri Aug 29 15:21:52 2025
models: ['ACCESS1-0']
 ----- model:  ACCESS1-0  ---------------------
PMPdriver: var loop start for model  ACCESS1-0
realization: r1i1p1
 --- run:  r1i1p1  ---
 --- var:  pr  ---
var_in_file: pr
var, areacell_in_file, realm: pr areacella atmos
path:  demo_data/CMIP5_demo_data/pr_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc
file_list:  ['demo_data/CMIP5_demo_data/pr_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc']
path:  demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc
file_list:  ['demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc']
path:  demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc
file_list:  ['demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc']
PMPdriver: var loop end
 --- var:  sst  ---
var_in_file: ts
var, areacell_in_file, realm: sst areacella atmos
path:  demo_data/CMIP5_demo_data/ts_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc
file_list:  ['demo_data/CMIP5_demo_data/ts_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc']
path:  demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc
file_list:  ['demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc']
path:  demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc
file_list:  ['demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc']
PMPdriver: var loop end
 --- var:  taux  ---
var_in_file: tauu
var, areacell_in_file, realm: taux areacella atmos
path:  demo_data/CMIP5_demo_data/tauu_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc
file_list:  ['demo_data/CMIP5_demo_data/tauu_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc']
path:  demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc
file_list:  ['demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc']
path:  demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc
file_list:  ['demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc']
PMPdriver: var loop end
dictDatasets:
{
    "model": {
        "ACCESS1-0_r1i1p1": {
            "pr": {
                "areaname": "areacella",
                "landmaskname": "sftlf",
                "path + filename": "demo_data/CMIP5_demo_data/pr_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc",
                "path + filename_area": "demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc",
                "path + filename_landmask": "demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc",
                "varname": "pr"
            },
            "sst": {
                "areaname": "areacella",
                "landmaskname": "sftlf",
                "path + filename": "demo_data/CMIP5_demo_data/ts_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc",
                "path + filename_area": "demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc",
                "path + filename_landmask": "demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc",
                "varname": "ts"
            },
            "taux": {
                "areaname": "areacella",
                "landmaskname": "sftlf",
                "path + filename": "demo_data/CMIP5_demo_data/tauu_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc",
                "path + filename_area": "demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc",
                "path + filename_landmask": "demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc",
                "varname": "tauu"
            }
        }
    },
    "observations": {
        "ERA-Interim": {
            "pr": {
                "areaname": "areacella",
                "landmaskname": "sftlf",
                "path + filename": "demo_data/obs4MIPs_PCMDI_monthly/ECMWF/ERA-INT/mon/pr/gn/v20210727/pr_mon_ERA-INT_PCMDI_gn_197901-201903.nc",
                "path + filename_area": null,
                "path + filename_landmask": null,
                "varname": "pr"
            },
            "sst": {
                "areaname": "areacella",
                "landmaskname": "sftlf",
                "path + filename": "demo_data/obs4MIPs_PCMDI_monthly/ECMWF/ERA-INT/mon/ts/gn/v20210727/ts_mon_ERA-INT_PCMDI_gn_197901-201903.nc",
                "path + filename_area": null,
                "path + filename_landmask": null,
                "varname": "ts"
            },
            "taux": {
                "areaname": "areacella",
                "landmaskname": "sftlf",
                "path + filename": "demo_data/obs4MIPs_PCMDI_monthly/ECMWF/ERA-INT/mon/tauu/gn/v20210727/tauu_mon_ERA-INT_PCMDI_gn_197901-201903.nc",
                "path + filename_area": null,
                "path + filename_landmask": null,
                "varname": "tauu"
            }
        },
        "GPCPv2.3": {
            "pr": {
                "areaname": "areacella",
                "landmaskname": "sftlf",
                "path + filename": "demo_data/obs4MIPs_PCMDI_monthly/NOAA-NCEI/GPCP-2-3/mon/pr/gn/v20210727/pr_mon_GPCP-2-3_PCMDI_gn_197901-201907.nc",
                "path + filename_area": null,
                "path + filename_landmask": null,
                "varname": "pr"
            }
        },
        "HadISST": {
            "sst": {
                "areaname": "areacella",
                "landmaskname": "sftlf",
                "path + filename": "demo_data/obs4MIPs_PCMDI_monthly/MOHC/HadISST-1-1/mon/ts/gn/v20210727/ts_mon_HadISST-1-1_PCMDI_gn_187001-201907.nc",
                "path + filename_area": null,
                "path + filename_landmask": null,
                "varname": "ts"
            }
        }
    }
}

### Compute the metric collection ###

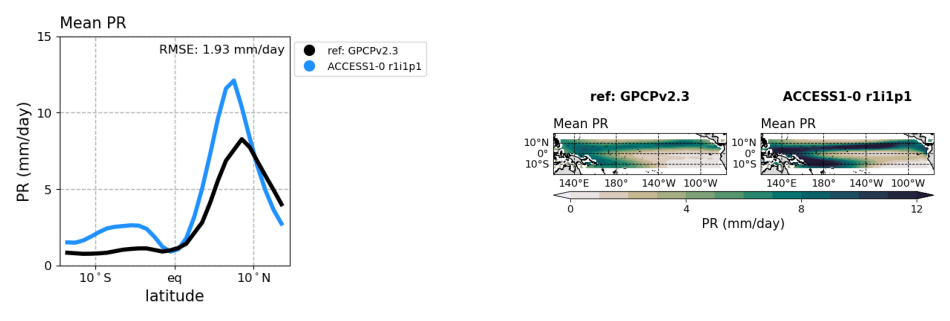

     ComputeCollection: metric = BiasPrLatRmse
     ComputeMetric: oneVarRMSmetric, BiasPrLatRmse = ACCESS1-0_r1i1p1 and ERA-Interim
                         NOTE: Estimated landmask applied
/Users/lee1043/miniforge3/envs/pmp_devel_20250715/lib/python3.10/site-packages/share/cdutil/navy_land.nc
     ComputeCollection: metric = BiasPrLonRmse
     ComputeMetric: oneVarRMSmetric, BiasPrLonRmse = ACCESS1-0_r1i1p1 and ERA-Interim
                         NOTE: Estimated landmask applied
/Users/lee1043/miniforge3/envs/pmp_devel_20250715/lib/python3.10/site-packages/share/cdutil/navy_land.nc
     ComputeCollection: metric = BiasSstLonRmse
     ComputeMetric: oneVarRMSmetric, BiasSstLonRmse = ACCESS1-0_r1i1p1 and ERA-Interim
                         NOTE: Estimated landmask applied
/Users/lee1043/miniforge3/envs/pmp_devel_20250715/lib/python3.10/site-packages/share/cdutil/navy_land.nc
     ComputeCollection: metric = BiasTauxLonRmse
     ComputeMetric: oneVarRMSmetric, BiasTauxLonRmse = ACCESS1-0_r1i1p1 and ERA-Interim
               EnsoUvcdatToolsLib AverageHorizontal
                         NOTE: Estimated landmask applied
/Users/lee1043/miniforge3/envs/pmp_devel_20250715/lib/python3.10/site-packages/share/cdutil/navy_land.nc
     ComputeCollection: metric = EnsoAmpl
     ComputeMetric: oneVarmetric = ACCESS1-0_r1i1p1
               EnsoUvcdatToolsLib AverageMeridional
/Users/lee1043/miniforge3/envs/pmp_devel_20250715/lib/python3.10/site-packages/cdms2/dataset.py:2179: Warning: Files are written with compression and no shuffling
You can query different values of compression using the functions:
cdms2.getNetcdfShuffleFlag() returning 1 if shuffling is enabled, 0 otherwise
cdms2.getNetcdfDeflateFlag() returning 1 if deflate is used, 0 otherwise
cdms2.getNetcdfDeflateLevelFlag() returning the level of compression for the deflate method

If you want to turn that off or set different values of compression use the functions:
value = 0
cdms2.setNetcdfShuffleFlag(value) ## where value is either 0 or 1
cdms2.setNetcdfDeflateFlag(value) ## where value is either 0 or 1
cdms2.setNetcdfDeflateLevelFlag(value) ## where value is a integer between 0 and 9 included

To produce NetCDF3 Classic files use:
cdms2.useNetCDF3()
To Force NetCDF4 output with classic format and no compressing use:
cdms2.setNetcdf4Flag(1)
NetCDF4 file with no shuffling or deflate and noclassic will be open for parallel i/o
  warnings.warn("Files are written with compression and no shuffling\n" +
     ComputeMetric: oneVarmetric = ERA-Interim
                         NOTE: Estimated landmask applied
/Users/lee1043/miniforge3/envs/pmp_devel_20250715/lib/python3.10/site-packages/share/cdutil/navy_land.nc
     ComputeCollection: metric = EnsoDuration
     ComputeMetric: oneVarmetric = ACCESS1-0_r1i1p1
/Users/lee1043/miniforge3/envs/pmp_devel_20250715/lib/python3.10/site-packages/cdms2/MV2.py:318: Warning: arguments order for compress function has changed
it is now: MV2.copmress(array,condition), if your code seems to not react or act wrong to a call to compress, please check this
  warnings.warn(
     ComputeMetric: oneVarmetric = ERA-Interim
                         NOTE: Estimated landmask applied
/Users/lee1043/miniforge3/envs/pmp_devel_20250715/lib/python3.10/site-packages/share/cdutil/navy_land.nc
     ComputeCollection: metric = EnsoSeasonality
     ComputeMetric: oneVarmetric = ACCESS1-0_r1i1p1
               EnsoUvcdatToolsLib AverageMeridional
               EnsoUvcdatToolsLib AverageMeridional
               EnsoUvcdatToolsLib AverageMeridional
     ComputeMetric: oneVarmetric = ERA-Interim
                         NOTE: Estimated landmask applied
/Users/lee1043/miniforge3/envs/pmp_devel_20250715/lib/python3.10/site-packages/share/cdutil/navy_land.nc
     ComputeCollection: metric = EnsoSstDiversity_2
     ComputeMetric: oneVarmetric = ACCESS1-0_r1i1p1
               EnsoUvcdatToolsLib AverageMeridional
     ComputeMetric: oneVarmetric = ERA-Interim
                         NOTE: Estimated landmask applied
/Users/lee1043/miniforge3/envs/pmp_devel_20250715/lib/python3.10/site-packages/share/cdutil/navy_land.nc
     ComputeCollection: metric = EnsoSstLonRmse
     ComputeMetric: oneVarRMSmetric, EnsoSstLonRmse = ACCESS1-0_r1i1p1 and ERA-Interim
                         NOTE: Estimated landmask applied
/Users/lee1043/miniforge3/envs/pmp_devel_20250715/lib/python3.10/site-packages/share/cdutil/navy_land.nc
     ComputeCollection: metric = EnsoSstSkew
     ComputeMetric: oneVarmetric = ACCESS1-0_r1i1p1
               EnsoUvcdatToolsLib AverageMeridional
     ComputeMetric: oneVarmetric = ERA-Interim
                         NOTE: Estimated landmask applied
/Users/lee1043/miniforge3/envs/pmp_devel_20250715/lib/python3.10/site-packages/share/cdutil/navy_land.nc
     ComputeCollection: metric = EnsoSstTsRmse
     ComputeMetric: oneVarRMSmetric, EnsoSstTsRmse = ACCESS1-0_r1i1p1 and ERA-Interim
                         NOTE: Estimated landmask applied
/Users/lee1043/miniforge3/envs/pmp_devel_20250715/lib/python3.10/site-packages/share/cdutil/navy_land.nc
     ComputeCollection: metric = SeasonalPrLatRmse
     ComputeMetric: oneVarRMSmetric, SeasonalPrLatRmse = ACCESS1-0_r1i1p1 and ERA-Interim
                         NOTE: Estimated landmask applied
/Users/lee1043/miniforge3/envs/pmp_devel_20250715/lib/python3.10/site-packages/share/cdutil/navy_land.nc
     ComputeCollection: metric = SeasonalPrLonRmse
     ComputeMetric: oneVarRMSmetric, SeasonalPrLonRmse = ACCESS1-0_r1i1p1 and ERA-Interim
                         NOTE: Estimated landmask applied
/Users/lee1043/miniforge3/envs/pmp_devel_20250715/lib/python3.10/site-packages/share/cdutil/navy_land.nc
     ComputeCollection: metric = SeasonalSstLonRmse
     ComputeMetric: oneVarRMSmetric, SeasonalSstLonRmse = ACCESS1-0_r1i1p1 and ERA-Interim
                         NOTE: Estimated landmask applied
/Users/lee1043/miniforge3/envs/pmp_devel_20250715/lib/python3.10/site-packages/share/cdutil/navy_land.nc
     ComputeCollection: metric = SeasonalTauxLonRmse
     ComputeMetric: oneVarRMSmetric, SeasonalTauxLonRmse = ACCESS1-0_r1i1p1 and ERA-Interim
               EnsoUvcdatToolsLib AverageHorizontal
                         NOTE: Estimated landmask applied
/Users/lee1043/miniforge3/envs/pmp_devel_20250715/lib/python3.10/site-packages/share/cdutil/navy_land.nc
INFO::2025-08-29 15:23::pcmdi_metrics:: Results saved to a json file: /Users/lee1043/Documents/Research/git/pcmdi_metrics_20230620_pcmdi/pcmdi_metrics/doc/jupyter/Demo/demo_output/basicTestEnso/ENSO_perf/cmip5_historical_ENSO_perf_basicTestEnso_ACCESS1-0_r1i1p1.json
2025-08-29 15:23:13,255 [INFO]: base.py(write:347) >> Results saved to a json file: /Users/lee1043/Documents/Research/git/pcmdi_metrics_20230620_pcmdi/pcmdi_metrics/doc/jupyter/Demo/demo_output/basicTestEnso/ENSO_perf/cmip5_historical_ENSO_perf_basicTestEnso_ACCESS1-0_r1i1p1.json
2025-08-29 15:23:13,255 [INFO]: base.py(write:347) >> Results saved to a json file: /Users/lee1043/Documents/Research/git/pcmdi_metrics_20230620_pcmdi/pcmdi_metrics/doc/jupyter/Demo/demo_output/basicTestEnso/ENSO_perf/cmip5_historical_ENSO_perf_basicTestEnso_ACCESS1-0_r1i1p1.json
INFO::2025-08-29 15:23::pcmdi_metrics:: Results saved to a json file: /Users/lee1043/Documents/Research/git/pcmdi_metrics_20230620_pcmdi/pcmdi_metrics/doc/jupyter/Demo/demo_output/basicTestEnso/ENSO_perf/cmip5_historical_ENSO_perf_basicTestEnso_ACCESS1-0_r1i1p1_diveDown.json
2025-08-29 15:23:18,085 [INFO]: base.py(write:347) >> Results saved to a json file: /Users/lee1043/Documents/Research/git/pcmdi_metrics_20230620_pcmdi/pcmdi_metrics/doc/jupyter/Demo/demo_output/basicTestEnso/ENSO_perf/cmip5_historical_ENSO_perf_basicTestEnso_ACCESS1-0_r1i1p1_diveDown.json
2025-08-29 15:23:18,085 [INFO]: base.py(write:347) >> Results saved to a json file: /Users/lee1043/Documents/Research/git/pcmdi_metrics_20230620_pcmdi/pcmdi_metrics/doc/jupyter/Demo/demo_output/basicTestEnso/ENSO_perf/cmip5_historical_ENSO_perf_basicTestEnso_ACCESS1-0_r1i1p1_diveDown.json
figure plotting start
metrics: ['BiasPrLatRmse', 'BiasPrLonRmse', 'BiasSstLonRmse', 'BiasTauxLonRmse', 'EnsoAmpl', 'EnsoDuration', 'EnsoSeasonality', 'EnsoSstDiversity_2', 'EnsoSstLonRmse', 'EnsoSstSkew', 'EnsoSstTsRmse', 'SeasonalPrLatRmse', 'SeasonalPrLonRmse', 'SeasonalSstLonRmse', 'SeasonalTauxLonRmse']
filename_js: demo_output/basicTestEnso/ENSO_perf/cmip5_historical_ENSO_perf_basicTestEnso_ACCESS1-0_r1i1p1.json
met: BiasPrLatRmse
filename_nc: demo_output/basicTestEnso/ENSO_perf/cmip5_historical_ENSO_perf_basicTestEnso_ACCESS1-0_r1i1p1_BiasPrLatRmse.nc
failed for  ACCESS1-0 r1i1p1
'BiasPrLatRmse'
PMPdriver: model loop end
Process end: Fri Aug 29 15:23:18 2025

This run saved metrics to two files:

  • basicTestEnso/ENSO_perf/cmip5_historical_ENSO_perf_basicTestEnso_ACCESS1-0_r1i1p1.json

  • basicTestEnso/ENSO_perf/cmip5_historical_ENSO_perf_basicTestEnso_ACCESS1-0_r1i1p1_diveDown.json

diveDown metrics are not available in all cases.

Example dive down (i.e., diagnostics) figures:

[9]:
# figure size in inches optional
rcParams['figure.figsize'] = 12, 10

# path to images
plot1 = os.path.join(demo_output_directory,"basicTestEnso/ENSO_perf/cmip5_historical_ENSO_perf_ACCESS1-0_r1i1p1_BiasPrLatRmse_diagnostic_divedown01.png")
plot2 = os.path.join(demo_output_directory,"basicTestEnso/ENSO_perf/cmip5_historical_ENSO_perf_ACCESS1-0_r1i1p1_BiasPrLatRmse_diagnostic_divedown02.png")

# display images
fig, ax = plt.subplots(1,2); ax[0].axis('off'); ax[1].axis('off')
ax[0].imshow(mpimg.imread(plot1))
ax[1].imshow(mpimg.imread(plot2))
[9]:
<matplotlib.image.AxesImage at 0x1affcb610>
../_images/examples_Demo_6_ENSO_24_1.png

The results section of cmip5_historical_ENSO_perf_basicTestEnso_ACCESS1-0_r1i1p1.json is shown below.

[10]:
import json
metrics_file=demo_output_directory+"/basicTestEnso/ENSO_perf/cmip5_historical_ENSO_perf_basicTestEnso_ACCESS1-0_r1i1p1.json"
with open(metrics_file) as f:
    results = json.load(f)["RESULTS"]["model"]["ACCESS1-0"]["r1i1p1"]["value"]
print(json.dumps(results, indent = 2))
{}

ENSO Metrics Collections

There are 3 metrics collections available:
ENSO_perf
ENSO_tel
ENSO_proc

They can be selected using the --metricsCollection flag. The first example used the “ENSO_perf” collection.

The next example runs the teleconnection collection. To save individual metrics in netCDF format, it uses the --nc_out flag.

[11]:
%%bash -s "$demo_output_directory"
enso_driver.py -p basic_enso_param.py \
--metricsCollection ENSO_tel \
--results_dir $1/basicTestEnso/ENSO_tel \
--nc_out True
mip: cmip5
exp: historical
models: ['ACCESS1-0']
realization:  r1i1p1
mc_name: ENSO_tel
outdir: demo_output/basicTestEnso/ENSO_tel
netcdf_path: demo_output/basicTestEnso/ENSO_tel
debug: False
obs_cmor: True
obs_cmor_path: demo_data/obs4MIPs_PCMDI_monthly
egg_pth: /Users/lee1043/miniforge3/envs/pmp_devel_20250715/share/pmp
output directory for graphics:demo_output/basicTestEnso/ENSO_tel
output directory for diagnostic_results:demo_output/basicTestEnso/ENSO_tel
output directory for metrics_results:demo_output/basicTestEnso/ENSO_tel
list_variables: ['pr', 'sst']
list_obs: ['AVISO-1-0', 'ERA-INT', 'GPCP-2-3', 'HadISST-1-1']
PMPdriver: dict_obs readin end
Process start:Fri Aug 29 15:23:25 2025
models: ['ACCESS1-0']
 ----- model:  ACCESS1-0  ---------------------
PMPdriver: var loop start for model  ACCESS1-0
realization: r1i1p1
 --- run:  r1i1p1  ---
 --- var:  pr  ---
var_in_file: pr
var, areacell_in_file, realm: pr areacella atmos
path:  demo_data/CMIP5_demo_data/pr_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc
file_list:  ['demo_data/CMIP5_demo_data/pr_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc']
path:  demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc
file_list:  ['demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc']
path:  demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc
file_list:  ['demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc']
PMPdriver: var loop end
 --- var:  sst  ---
var_in_file: ts
var, areacell_in_file, realm: sst areacella atmos
path:  demo_data/CMIP5_demo_data/ts_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc
file_list:  ['demo_data/CMIP5_demo_data/ts_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc']
path:  demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc
file_list:  ['demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc']
path:  demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc
file_list:  ['demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc']
PMPdriver: var loop end
dictDatasets:
{
    "model": {
        "ACCESS1-0_r1i1p1": {
            "pr": {
                "areaname": "areacella",
                "landmaskname": "sftlf",
                "path + filename": "demo_data/CMIP5_demo_data/pr_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc",
                "path + filename_area": "demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc",
                "path + filename_landmask": "demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc",
                "varname": "pr"
            },
            "sst": {
                "areaname": "areacella",
                "landmaskname": "sftlf",
                "path + filename": "demo_data/CMIP5_demo_data/ts_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc",
                "path + filename_area": "demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc",
                "path + filename_landmask": "demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc",
                "varname": "ts"
            }
        }
    },
    "observations": {
        "ERA-Interim": {
            "pr": {
                "areaname": "areacella",
                "landmaskname": "sftlf",
                "path + filename": "demo_data/obs4MIPs_PCMDI_monthly/ECMWF/ERA-INT/mon/pr/gn/v20210727/pr_mon_ERA-INT_PCMDI_gn_197901-201903.nc",
                "path + filename_area": null,
                "path + filename_landmask": null,
                "varname": "pr"
            },
            "sst": {
                "areaname": "areacella",
                "landmaskname": "sftlf",
                "path + filename": "demo_data/obs4MIPs_PCMDI_monthly/ECMWF/ERA-INT/mon/ts/gn/v20210727/ts_mon_ERA-INT_PCMDI_gn_197901-201903.nc",
                "path + filename_area": null,
                "path + filename_landmask": null,
                "varname": "ts"
            }
        },
        "GPCPv2.3": {
            "pr": {
                "areaname": "areacella",
                "landmaskname": "sftlf",
                "path + filename": "demo_data/obs4MIPs_PCMDI_monthly/NOAA-NCEI/GPCP-2-3/mon/pr/gn/v20210727/pr_mon_GPCP-2-3_PCMDI_gn_197901-201907.nc",
                "path + filename_area": null,
                "path + filename_landmask": null,
                "varname": "pr"
            }
        },
        "HadISST": {
            "sst": {
                "areaname": "areacella",
                "landmaskname": "sftlf",
                "path + filename": "demo_data/obs4MIPs_PCMDI_monthly/MOHC/HadISST-1-1/mon/ts/gn/v20210727/ts_mon_HadISST-1-1_PCMDI_gn_187001-201907.nc",
                "path + filename_area": null,
                "path + filename_landmask": null,
                "varname": "ts"
            }
        }
    }
}

### Compute the metric collection ###

     ComputeCollection: metric = EnsoAmpl
     ComputeMetric: oneVarmetric = ACCESS1-0_r1i1p1
               EnsoUvcdatToolsLib AverageMeridional
/Users/lee1043/miniforge3/envs/pmp_devel_20250715/lib/python3.10/site-packages/cdms2/dataset.py:2179: Warning: Files are written with compression and no shuffling
You can query different values of compression using the functions:
cdms2.getNetcdfShuffleFlag() returning 1 if shuffling is enabled, 0 otherwise
cdms2.getNetcdfDeflateFlag() returning 1 if deflate is used, 0 otherwise
cdms2.getNetcdfDeflateLevelFlag() returning the level of compression for the deflate method

If you want to turn that off or set different values of compression use the functions:
value = 0
cdms2.setNetcdfShuffleFlag(value) ## where value is either 0 or 1
cdms2.setNetcdfDeflateFlag(value) ## where value is either 0 or 1
cdms2.setNetcdfDeflateLevelFlag(value) ## where value is a integer between 0 and 9 included

To produce NetCDF3 Classic files use:
cdms2.useNetCDF3()
To Force NetCDF4 output with classic format and no compressing use:
cdms2.setNetcdf4Flag(1)
NetCDF4 file with no shuffling or deflate and noclassic will be open for parallel i/o
  warnings.warn("Files are written with compression and no shuffling\n" +
     ComputeMetric: oneVarmetric = ERA-Interim
                         NOTE: Estimated landmask applied
/Users/lee1043/miniforge3/envs/pmp_devel_20250715/lib/python3.10/site-packages/share/cdutil/navy_land.nc
     ComputeCollection: metric = EnsoPrMapDjf
     ComputeMetric: twoVarRMSmetric, EnsoPrMapDjf = ACCESS1-0_r1i1p1 and ERA-Interim_ERA-Interim
                         NOTE: Estimated landmask applied
/Users/lee1043/miniforge3/envs/pmp_devel_20250715/lib/python3.10/site-packages/share/cdutil/navy_land.nc
     ComputeCollection: metric = EnsoPrMapJja
     ComputeMetric: twoVarRMSmetric, EnsoPrMapJja = ACCESS1-0_r1i1p1 and ERA-Interim_ERA-Interim
                         NOTE: Estimated landmask applied
/Users/lee1043/miniforge3/envs/pmp_devel_20250715/lib/python3.10/site-packages/share/cdutil/navy_land.nc
     ComputeCollection: metric = EnsoSeasonality
     ComputeMetric: oneVarmetric = ACCESS1-0_r1i1p1
               EnsoUvcdatToolsLib AverageMeridional
               EnsoUvcdatToolsLib AverageMeridional
               EnsoUvcdatToolsLib AverageMeridional
     ComputeMetric: oneVarmetric = ERA-Interim
                         NOTE: Estimated landmask applied
/Users/lee1043/miniforge3/envs/pmp_devel_20250715/lib/python3.10/site-packages/share/cdutil/navy_land.nc
     ComputeCollection: metric = EnsoSstLonRmse
     ComputeMetric: oneVarRMSmetric, EnsoSstLonRmse = ACCESS1-0_r1i1p1 and ERA-Interim
                         NOTE: Estimated landmask applied
/Users/lee1043/miniforge3/envs/pmp_devel_20250715/lib/python3.10/site-packages/share/cdutil/navy_land.nc
     ComputeCollection: metric = EnsoSstMapDjf
     ComputeMetric: oneVarRMSmetric, EnsoSstMapDjf = ACCESS1-0_r1i1p1 and ERA-Interim
                         NOTE: Estimated landmask applied
/Users/lee1043/miniforge3/envs/pmp_devel_20250715/lib/python3.10/site-packages/share/cdutil/navy_land.nc
     ComputeCollection: metric = EnsoSstMapJja
     ComputeMetric: oneVarRMSmetric, EnsoSstMapJja = ACCESS1-0_r1i1p1 and ERA-Interim
                         NOTE: Estimated landmask applied
/Users/lee1043/miniforge3/envs/pmp_devel_20250715/lib/python3.10/site-packages/share/cdutil/navy_land.nc
INFO::2025-08-29 15:23::pcmdi_metrics:: Results saved to a json file: /Users/lee1043/Documents/Research/git/pcmdi_metrics_20230620_pcmdi/pcmdi_metrics/doc/jupyter/Demo/demo_output/basicTestEnso/ENSO_tel/cmip5_historical_ENSO_tel_basicTestEnso_ACCESS1-0_r1i1p1.json
2025-08-29 15:23:53,700 [INFO]: base.py(write:347) >> Results saved to a json file: /Users/lee1043/Documents/Research/git/pcmdi_metrics_20230620_pcmdi/pcmdi_metrics/doc/jupyter/Demo/demo_output/basicTestEnso/ENSO_tel/cmip5_historical_ENSO_tel_basicTestEnso_ACCESS1-0_r1i1p1.json
2025-08-29 15:23:53,700 [INFO]: base.py(write:347) >> Results saved to a json file: /Users/lee1043/Documents/Research/git/pcmdi_metrics_20230620_pcmdi/pcmdi_metrics/doc/jupyter/Demo/demo_output/basicTestEnso/ENSO_tel/cmip5_historical_ENSO_tel_basicTestEnso_ACCESS1-0_r1i1p1.json
INFO::2025-08-29 15:23::pcmdi_metrics:: Results saved to a json file: /Users/lee1043/Documents/Research/git/pcmdi_metrics_20230620_pcmdi/pcmdi_metrics/doc/jupyter/Demo/demo_output/basicTestEnso/ENSO_tel/cmip5_historical_ENSO_tel_basicTestEnso_ACCESS1-0_r1i1p1_diveDown.json
2025-08-29 15:23:59,279 [INFO]: base.py(write:347) >> Results saved to a json file: /Users/lee1043/Documents/Research/git/pcmdi_metrics_20230620_pcmdi/pcmdi_metrics/doc/jupyter/Demo/demo_output/basicTestEnso/ENSO_tel/cmip5_historical_ENSO_tel_basicTestEnso_ACCESS1-0_r1i1p1_diveDown.json
2025-08-29 15:23:59,279 [INFO]: base.py(write:347) >> Results saved to a json file: /Users/lee1043/Documents/Research/git/pcmdi_metrics_20230620_pcmdi/pcmdi_metrics/doc/jupyter/Demo/demo_output/basicTestEnso/ENSO_tel/cmip5_historical_ENSO_tel_basicTestEnso_ACCESS1-0_r1i1p1_diveDown.json
figure plotting start
metrics: ['EnsoAmpl', 'EnsoPrMapDjf', 'EnsoPrMapJja', 'EnsoSeasonality', 'EnsoSstLonRmse', 'EnsoSstMapDjf', 'EnsoSstMapJja']
filename_js: demo_output/basicTestEnso/ENSO_tel/cmip5_historical_ENSO_tel_basicTestEnso_ACCESS1-0_r1i1p1.json
met: EnsoAmpl
filename_nc: demo_output/basicTestEnso/ENSO_tel/cmip5_historical_ENSO_tel_basicTestEnso_ACCESS1-0_r1i1p1_EnsoAmpl.nc
failed for  ACCESS1-0 r1i1p1
'EnsoAmpl'
PMPdriver: model loop end
Process end: Fri Aug 29 15:23:59 2025

All of the results (netCDF and JSON) are located in the output directory, which uses the metrics collection name.

[12]:
!ls {demo_output_directory + "/basicTestEnso/ENSO_tel/*.nc"}
demo_output/basicTestEnso/ENSO_tel/cmip5_historical_ENSO_tel_basicTestEnso_ACCESS1-0_r1i1p1_EnsoAmpl.nc
demo_output/basicTestEnso/ENSO_tel/cmip5_historical_ENSO_tel_basicTestEnso_ACCESS1-0_r1i1p1_EnsoSeasonality.nc
[13]:
# figure size in inches optional
rcParams['figure.figsize'] = 16, 10

# path to images
plot1 = os.path.join(demo_output_directory,"basicTestEnso/ENSO_tel/cmip5_historical_ENSO_tel_ACCESS1-0_r1i1p1_EnsoAmpl_diagnostic_divedown01.png")
plot2 = os.path.join(demo_output_directory,"basicTestEnso/ENSO_tel/cmip5_historical_ENSO_tel_ACCESS1-0_r1i1p1_EnsoAmpl_diagnostic_divedown02.png")
plot3 = os.path.join(demo_output_directory,"basicTestEnso/ENSO_tel/cmip5_historical_ENSO_tel_ACCESS1-0_r1i1p1_EnsoAmpl_diagnostic_divedown03.png")

# display images
fig, ax = plt.subplots(1,3); ax[0].axis('off'); ax[1].axis('off'); ax[2].axis('off')
ax[0].imshow(mpimg.imread(plot1))
ax[1].imshow(mpimg.imread(plot2))
ax[2].imshow(mpimg.imread(plot3))
[13]:
<matplotlib.image.AxesImage at 0x1b050e5c0>

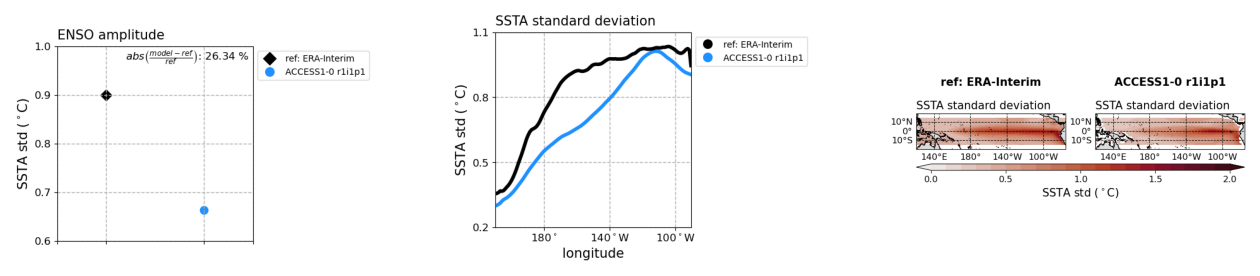

../_images/examples_Demo_6_ENSO_31_1.png

Finally, this example runs the remaining metrics collection ENSO_proc:

[14]:
%%bash -s "$demo_output_directory"
enso_driver.py -p basic_enso_param.py \
--metricsCollection ENSO_proc \
--results_dir $1/basicTestEnso/ENSO_proc
mip: cmip5
exp: historical
models: ['ACCESS1-0']
realization:  r1i1p1
mc_name: ENSO_proc
outdir: demo_output/basicTestEnso/ENSO_proc
netcdf_path: demo_output/basicTestEnso/ENSO_proc
debug: False
obs_cmor: True
obs_cmor_path: demo_data/obs4MIPs_PCMDI_monthly
egg_pth: /Users/lee1043/miniforge3/envs/pmp_devel_20250715/share/pmp
output directory for graphics:demo_output/basicTestEnso/ENSO_proc
output directory for diagnostic_results:demo_output/basicTestEnso/ENSO_proc
output directory for metrics_results:demo_output/basicTestEnso/ENSO_proc
list_variables: ['ssh', 'sst', 'taux', 'thf']
list_obs: ['AVISO-1-0', 'ERA-INT', 'GPCP-2-3', 'HadISST-1-1']
Observation dataset AVISO-1-0 is not given for variable thf
Observation dataset GPCP-2-3 is not given for variable thf
Observation dataset HadISST-1-1 is not given for variable thf
PMPdriver: dict_obs readin end
Process start:Fri Aug 29 15:24:07 2025
models: ['ACCESS1-0']
 ----- model:  ACCESS1-0  ---------------------
PMPdriver: var loop start for model  ACCESS1-0
realization: r1i1p1
 --- run:  r1i1p1  ---
 --- var:  ssh  ---
var_in_file: zos
var, areacell_in_file, realm: ssh areacello ocean
path:  demo_data/CMIP5_demo_data/zos_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc
file_list:  []
path:  demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc
file_list:  ['demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc']
path:  demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc
file_list:  ['demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc']
PMPdriver: var loop end
 --- var:  sst  ---
var_in_file: ts
var, areacell_in_file, realm: sst areacella atmos
path:  demo_data/CMIP5_demo_data/ts_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc
file_list:  ['demo_data/CMIP5_demo_data/ts_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc']
path:  demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc
file_list:  ['demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc']
path:  demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc
file_list:  ['demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc']
PMPdriver: var loop end
 --- var:  taux  ---
var_in_file: tauu
var, areacell_in_file, realm: taux areacella atmos
path:  demo_data/CMIP5_demo_data/tauu_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc
file_list:  ['demo_data/CMIP5_demo_data/tauu_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc']
path:  demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc
file_list:  ['demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc']
path:  demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc
file_list:  ['demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc']
PMPdriver: var loop end
 --- var:  thf  ---
var_in_file: ['hfls', 'hfss', 'rlds', 'rlus', 'rsds', 'rsus']
var, areacell_in_file, realm: thf areacella atmos
path:  demo_data/CMIP5_demo_data/hfls_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc
file_list:  ['demo_data/CMIP5_demo_data/hfls_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc']
path:  demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc
file_list:  ['demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc']
path:  demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc
file_list:  ['demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc']
path:  demo_data/CMIP5_demo_data/hfls_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc
file_list:  ['demo_data/CMIP5_demo_data/hfls_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc']
path:  demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc
file_list:  ['demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc']
file_areacell_tmp: demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc
path:  demo_data/CMIP5_demo_data/hfss_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc
file_list:  ['demo_data/CMIP5_demo_data/hfss_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc']
path:  demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc
file_list:  ['demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc']
file_areacell_tmp: demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc
path:  demo_data/CMIP5_demo_data/rlds_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc
file_list:  ['demo_data/CMIP5_demo_data/rlds_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc']
path:  demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc
file_list:  ['demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc']
file_areacell_tmp: demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc
path:  demo_data/CMIP5_demo_data/rlus_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc
file_list:  ['demo_data/CMIP5_demo_data/rlus_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc']
path:  demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc
file_list:  ['demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc']
file_areacell_tmp: demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc
path:  demo_data/CMIP5_demo_data/rsds_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc
file_list:  ['demo_data/CMIP5_demo_data/rsds_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc']
path:  demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc
file_list:  ['demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc']
file_areacell_tmp: demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc
path:  demo_data/CMIP5_demo_data/rsus_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc
file_list:  ['demo_data/CMIP5_demo_data/rsus_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc']
path:  demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc
file_list:  ['demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc']
file_areacell_tmp: demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc
PMPdriver: var loop end
dictDatasets:
{
    "model": {
        "ACCESS1-0_r1i1p1": {
            "ssh": {
                "areaname": "areacello",
                "landmaskname": "sftlf",
                "path + filename": null,
                "path + filename_area": "demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc",
                "path + filename_landmask": null,
                "varname": "zos"
            },
            "sst": {
                "areaname": "areacella",
                "landmaskname": "sftlf",
                "path + filename": "demo_data/CMIP5_demo_data/ts_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc",
                "path + filename_area": "demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc",
                "path + filename_landmask": "demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc",
                "varname": "ts"
            },
            "taux": {
                "areaname": "areacella",
                "landmaskname": "sftlf",
                "path + filename": "demo_data/CMIP5_demo_data/tauu_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc",
                "path + filename_area": "demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc",
                "path + filename_landmask": "demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc",
                "varname": "tauu"
            },
            "thf": {
                "areaname": [
                    "areacella",
                    "areacella",
                    "areacella",
                    "areacella",
                    "areacella",
                    "areacella"
                ],
                "landmaskname": [
                    "sftlf",
                    "sftlf",
                    "sftlf",
                    "sftlf",
                    "sftlf",
                    "sftlf"
                ],
                "path + filename": [
                    "demo_data/CMIP5_demo_data/hfls_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc",
                    "demo_data/CMIP5_demo_data/hfss_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc",
                    "demo_data/CMIP5_demo_data/rlds_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc",
                    "demo_data/CMIP5_demo_data/rlus_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc",
                    "demo_data/CMIP5_demo_data/rsds_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc",
                    "demo_data/CMIP5_demo_data/rsus_Amon_ACCESS1-0_historical_r1i1p1_185001-200512.nc"
                ],
                "path + filename_area": [
                    "demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc",
                    "demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc",
                    "demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc",
                    "demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc",
                    "demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc",
                    "demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc"
                ],
                "path + filename_landmask": [
                    "demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc",
                    "demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc",
                    "demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc",
                    "demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc",
                    "demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc",
                    "demo_data/CMIP5_demo_data/sftlf_fx_ACCESS1-0_amip_r0i0p0.nc"
                ],
                "varname": [
                    "hfls",
                    "hfss",
                    "rlds",
                    "rlus",
                    "rsds",
                    "rsus"
                ]
            }
        }
    },
    "observations": {
        "AVISO": {
            "ssh": {
                "areaname": "areacella",
                "landmaskname": "sftlf",
                "path + filename": "demo_data/obs4MIPs_PCMDI_monthly/CNES/AVISO-1-0/mon/zos/gn/v20210727/zos_mon_AVISO-1-0_PCMDI_gn_199301-201912.nc",
                "path + filename_area": null,
                "path + filename_landmask": null,
                "varname": "zos"
            }
        },
        "ERA-Interim": {
            "sst": {
                "areaname": "areacella",
                "landmaskname": "sftlf",
                "path + filename": "demo_data/obs4MIPs_PCMDI_monthly/ECMWF/ERA-INT/mon/ts/gn/v20210727/ts_mon_ERA-INT_PCMDI_gn_197901-201903.nc",
                "path + filename_area": null,
                "path + filename_landmask": null,
                "varname": "ts"
            },
            "taux": {
                "areaname": "areacella",
                "landmaskname": "sftlf",
                "path + filename": "demo_data/obs4MIPs_PCMDI_monthly/ECMWF/ERA-INT/mon/tauu/gn/v20210727/tauu_mon_ERA-INT_PCMDI_gn_197901-201903.nc",
                "path + filename_area": null,
                "path + filename_landmask": null,
                "varname": "tauu"
            },
            "thf": {
                "areaname": [
                    "areacella",
                    "areacella",
                    "areacella",
                    "areacella",
                    "areacella",
                    "areacella"
                ],
                "landmaskname": [
                    "sftlf",
                    "sftlf",
                    "sftlf",
                    "sftlf",
                    "sftlf",
                    "sftlf"
                ],
                "path + filename": [
                    "demo_data/obs4MIPs_PCMDI_monthly/ECMWF/ERA-INT/mon/hfls/gn/v20210727/hfls_mon_ERA-INT_PCMDI_gn_197901-201903.nc",
                    "demo_data/obs4MIPs_PCMDI_monthly/ECMWF/ERA-INT/mon/hfss/gn/v20210727/hfss_mon_ERA-INT_PCMDI_gn_197901-201903.nc",
                    "demo_data/obs4MIPs_PCMDI_monthly/ECMWF/ERA-INT/mon/rlds/gn/v20210727/rlds_mon_ERA-INT_PCMDI_gn_197901-201903.nc",
                    "demo_data/obs4MIPs_PCMDI_monthly/ECMWF/ERA-INT/mon/rlus/gn/v20210727/rlus_mon_ERA-INT_PCMDI_gn_197901-201903.nc",
                    "demo_data/obs4MIPs_PCMDI_monthly/ECMWF/ERA-INT/mon/rsds/gn/v20210727/rsds_mon_ERA-INT_PCMDI_gn_197901-201903.nc",
                    "demo_data/obs4MIPs_PCMDI_monthly/ECMWF/ERA-INT/mon/rsus/gn/v20210727/rsus_mon_ERA-INT_PCMDI_gn_197901-201903.nc"
                ],
                "path + filename_area": [
                    null,
                    null,
                    null,
                    null,
                    null,
                    null
                ],
                "path + filename_landmask": null,
                "varname": [
                    "hfls",
                    "hfss",
                    "rlds",
                    "rlus",
                    "rsds",
                    "rsus"
                ]
            }
        },
        "HadISST": {
            "sst": {
                "areaname": "areacella",
                "landmaskname": "sftlf",
                "path + filename": "demo_data/obs4MIPs_PCMDI_monthly/MOHC/HadISST-1-1/mon/ts/gn/v20210727/ts_mon_HadISST-1-1_PCMDI_gn_187001-201907.nc",
                "path + filename_area": null,
                "path + filename_landmask": null,
                "varname": "ts"
            }
        }
    }
}

### Compute the metric collection ###

     ComputeCollection: metric = BiasSstLonRmse
     ComputeMetric: oneVarRMSmetric, BiasSstLonRmse = ACCESS1-0_r1i1p1 and ERA-Interim
                         NOTE: Estimated landmask applied
/Users/lee1043/miniforge3/envs/pmp_devel_20250715/lib/python3.10/site-packages/share/cdutil/navy_land.nc
     ComputeCollection: metric = BiasTauxLonRmse
     ComputeMetric: oneVarRMSmetric, BiasTauxLonRmse = ACCESS1-0_r1i1p1 and ERA-Interim
               EnsoUvcdatToolsLib AverageHorizontal
                         NOTE: Estimated landmask applied
/Users/lee1043/miniforge3/envs/pmp_devel_20250715/lib/python3.10/site-packages/share/cdutil/navy_land.nc
     ComputeCollection: metric = EnsoAmpl
     ComputeMetric: oneVarmetric = ACCESS1-0_r1i1p1
               EnsoUvcdatToolsLib AverageMeridional
/Users/lee1043/miniforge3/envs/pmp_devel_20250715/lib/python3.10/site-packages/cdms2/dataset.py:2179: Warning: Files are written with compression and no shuffling
You can query different values of compression using the functions:
cdms2.getNetcdfShuffleFlag() returning 1 if shuffling is enabled, 0 otherwise
cdms2.getNetcdfDeflateFlag() returning 1 if deflate is used, 0 otherwise
cdms2.getNetcdfDeflateLevelFlag() returning the level of compression for the deflate method

If you want to turn that off or set different values of compression use the functions:
value = 0
cdms2.setNetcdfShuffleFlag(value) ## where value is either 0 or 1
cdms2.setNetcdfDeflateFlag(value) ## where value is either 0 or 1
cdms2.setNetcdfDeflateLevelFlag(value) ## where value is a integer between 0 and 9 included

To produce NetCDF3 Classic files use:
cdms2.useNetCDF3()
To Force NetCDF4 output with classic format and no compressing use:
cdms2.setNetcdf4Flag(1)
NetCDF4 file with no shuffling or deflate and noclassic will be open for parallel i/o
  warnings.warn("Files are written with compression and no shuffling\n" +
     ComputeMetric: oneVarmetric = ERA-Interim
                         NOTE: Estimated landmask applied
/Users/lee1043/miniforge3/envs/pmp_devel_20250715/lib/python3.10/site-packages/share/cdutil/navy_land.nc
     ComputeCollection: metric = EnsodSstOce_2
     ComputeMetric: twoVarmetric = ACCESS1-0_r1i1p1
               EnsoUvcdatToolsLib ReadAndSelectRegion
                         hfls sign reversed
     range old = +1.99 to +243.32
     range new = -243.32 to -1.99
               EnsoUvcdatToolsLib ReadAndSelectRegion
                         hfss sign reversed
     range old = -3.28 to +31.07
     range new = -31.07 to +3.28
/Users/lee1043/miniforge3/envs/pmp_devel_20250715/lib/python3.10/site-packages/cdms2/MV2.py:318: Warning: arguments order for compress function has changed
it is now: MV2.copmress(array,condition), if your code seems to not react or act wrong to a call to compress, please check this
  warnings.warn(
               EnsoUvcdatToolsLib ReadAndSelectRegion
                         hfls sign reversed
     range old = +1.99 to +290.82
     range new = -290.82 to -1.99
               EnsoUvcdatToolsLib ReadAndSelectRegion
                         hfss sign reversed
     range old = -3.28 to +62.31
     range new = -62.31 to +3.28
               EnsoUvcdatToolsLib AverageMeridional
               EnsoUvcdatToolsLib AverageMeridional
     ComputeMetric: twoVarmetric = ERA-Interim_ERA-Interim
                         NOTE: Estimated landmask applied
/Users/lee1043/miniforge3/envs/pmp_devel_20250715/lib/python3.10/site-packages/share/cdutil/navy_land.nc
     ComputeCollection: metric = EnsoFbSshSst
     ComputeCollection: ENSO_proc, metric EnsoFbSshSst not computed
          reason(s):
           no modeled ssh given
     ComputeCollection: metric = EnsoFbSstTaux
     ComputeMetric: twoVarmetric = ACCESS1-0_r1i1p1
               EnsoUvcdatToolsLib AverageHorizontal
               EnsoUvcdatToolsLib AverageHorizontal
                         NOTE: Estimated landmask applied
/Users/lee1043/miniforge3/envs/pmp_devel_20250715/lib/python3.10/site-packages/share/cdutil/navy_land.nc
     ComputeCollection: metric = EnsoFbSstThf
     ComputeMetric: twoVarmetric = ACCESS1-0_r1i1p1
               EnsoUvcdatToolsLib ReadAndSelectRegion
                         hfls sign reversed
     range old = +1.99 to +243.32
     range new = -243.32 to -1.99
               EnsoUvcdatToolsLib ReadAndSelectRegion
                         hfss sign reversed
     range old = -3.28 to +31.07
     range new = -31.07 to +3.28
               EnsoUvcdatToolsLib ReadAndSelectRegion
                         hfls sign reversed
     range old = +1.99 to +290.82
     range new = -290.82 to -1.99
               EnsoUvcdatToolsLib ReadAndSelectRegion
                         hfss sign reversed
     range old = -3.28 to +62.31
     range new = -62.31 to +3.28
               EnsoUvcdatToolsLib AverageMeridional
               EnsoUvcdatToolsLib AverageMeridional
     ComputeMetric: twoVarmetric = ERA-Interim_ERA-Interim
                         NOTE: Estimated landmask applied
/Users/lee1043/miniforge3/envs/pmp_devel_20250715/lib/python3.10/site-packages/share/cdutil/navy_land.nc
     ComputeCollection: metric = EnsoFbTauxSsh
     ComputeCollection: ENSO_proc, metric EnsoFbTauxSsh not computed
          reason(s):
           no modeled ssh given
     ComputeCollection: metric = EnsoSeasonality
     ComputeMetric: oneVarmetric = ACCESS1-0_r1i1p1
               EnsoUvcdatToolsLib AverageMeridional
               EnsoUvcdatToolsLib AverageMeridional
               EnsoUvcdatToolsLib AverageMeridional
     ComputeMetric: oneVarmetric = ERA-Interim
                         NOTE: Estimated landmask applied
/Users/lee1043/miniforge3/envs/pmp_devel_20250715/lib/python3.10/site-packages/share/cdutil/navy_land.nc
     ComputeCollection: metric = EnsoSstLonRmse
     ComputeMetric: oneVarRMSmetric, EnsoSstLonRmse = ACCESS1-0_r1i1p1 and ERA-Interim
                         NOTE: Estimated landmask applied
/Users/lee1043/miniforge3/envs/pmp_devel_20250715/lib/python3.10/site-packages/share/cdutil/navy_land.nc
     ComputeCollection: metric = EnsoSstSkew
     ComputeMetric: oneVarmetric = ACCESS1-0_r1i1p1
               EnsoUvcdatToolsLib AverageMeridional
     ComputeMetric: oneVarmetric = ERA-Interim
                         NOTE: Estimated landmask applied
/Users/lee1043/miniforge3/envs/pmp_devel_20250715/lib/python3.10/site-packages/share/cdutil/navy_land.nc
INFO::2025-08-29 15:26::pcmdi_metrics:: Results saved to a json file: /Users/lee1043/Documents/Research/git/pcmdi_metrics_20230620_pcmdi/pcmdi_metrics/doc/jupyter/Demo/demo_output/basicTestEnso/ENSO_proc/cmip5_historical_ENSO_proc_basicTestEnso_ACCESS1-0_r1i1p1.json
2025-08-29 15:26:11,380 [INFO]: base.py(write:347) >> Results saved to a json file: /Users/lee1043/Documents/Research/git/pcmdi_metrics_20230620_pcmdi/pcmdi_metrics/doc/jupyter/Demo/demo_output/basicTestEnso/ENSO_proc/cmip5_historical_ENSO_proc_basicTestEnso_ACCESS1-0_r1i1p1.json
2025-08-29 15:26:11,380 [INFO]: base.py(write:347) >> Results saved to a json file: /Users/lee1043/Documents/Research/git/pcmdi_metrics_20230620_pcmdi/pcmdi_metrics/doc/jupyter/Demo/demo_output/basicTestEnso/ENSO_proc/cmip5_historical_ENSO_proc_basicTestEnso_ACCESS1-0_r1i1p1.json
INFO::2025-08-29 15:26::pcmdi_metrics:: Results saved to a json file: /Users/lee1043/Documents/Research/git/pcmdi_metrics_20230620_pcmdi/pcmdi_metrics/doc/jupyter/Demo/demo_output/basicTestEnso/ENSO_proc/cmip5_historical_ENSO_proc_basicTestEnso_ACCESS1-0_r1i1p1_diveDown.json
2025-08-29 15:26:16,871 [INFO]: base.py(write:347) >> Results saved to a json file: /Users/lee1043/Documents/Research/git/pcmdi_metrics_20230620_pcmdi/pcmdi_metrics/doc/jupyter/Demo/demo_output/basicTestEnso/ENSO_proc/cmip5_historical_ENSO_proc_basicTestEnso_ACCESS1-0_r1i1p1_diveDown.json
2025-08-29 15:26:16,871 [INFO]: base.py(write:347) >> Results saved to a json file: /Users/lee1043/Documents/Research/git/pcmdi_metrics_20230620_pcmdi/pcmdi_metrics/doc/jupyter/Demo/demo_output/basicTestEnso/ENSO_proc/cmip5_historical_ENSO_proc_basicTestEnso_ACCESS1-0_r1i1p1_diveDown.json
figure plotting start
metrics: ['BiasSstLonRmse', 'BiasTauxLonRmse', 'EnsoAmpl', 'EnsodSstOce_2', 'EnsoFbSshSst', 'EnsoFbSstTaux', 'EnsoFbSstThf', 'EnsoFbTauxSsh', 'EnsoSeasonality', 'EnsoSstLonRmse', 'EnsoSstSkew']
filename_js: demo_output/basicTestEnso/ENSO_proc/cmip5_historical_ENSO_proc_basicTestEnso_ACCESS1-0_r1i1p1.json
met: BiasSstLonRmse
filename_nc: demo_output/basicTestEnso/ENSO_proc/cmip5_historical_ENSO_proc_basicTestEnso_ACCESS1-0_r1i1p1_BiasSstLonRmse.nc
failed for  ACCESS1-0 r1i1p1
'BiasSstLonRmse'
PMPdriver: model loop end
Process end: Fri Aug 29 15:26:16 2025
[15]:

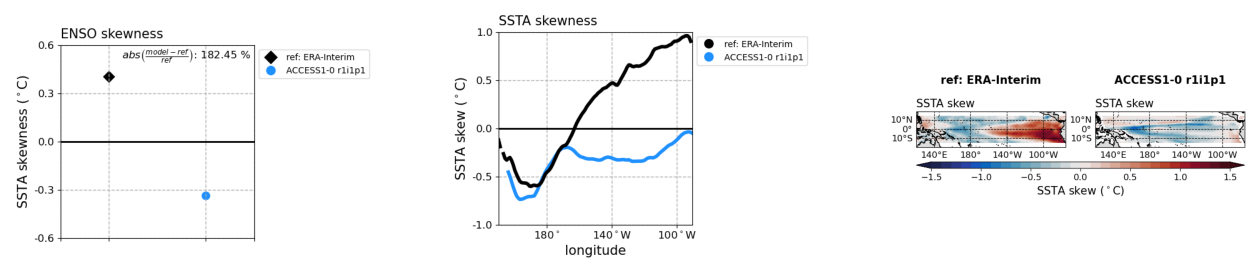

# figure size in inches optional
rcParams['figure.figsize'] = 16, 10

# path to images
plot1 = os.path.join(demo_output_directory,"basicTestEnso/ENSO_proc/cmip5_historical_ENSO_proc_ACCESS1-0_r1i1p1_EnsoSstSkew_diagnostic_divedown01.png")
plot2 = os.path.join(demo_output_directory,"basicTestEnso/ENSO_proc/cmip5_historical_ENSO_proc_ACCESS1-0_r1i1p1_EnsoSstSkew_diagnostic_divedown02.png")
plot3 = os.path.join(demo_output_directory,"basicTestEnso/ENSO_proc/cmip5_historical_ENSO_proc_ACCESS1-0_r1i1p1_EnsoSstSkew_diagnostic_divedown03.png")

# display images
fig, ax = plt.subplots(1,3); ax[0].axis('off'); ax[1].axis('off'); ax[2].axis('off')
ax[0].imshow(mpimg.imread(plot1))
ax[1].imshow(mpimg.imread(plot2))
ax[2].imshow(mpimg.imread(plot3))
[15]:
<matplotlib.image.AxesImage at 0x1b8e107c0>
../_images/examples_Demo_6_ENSO_34_1.png
